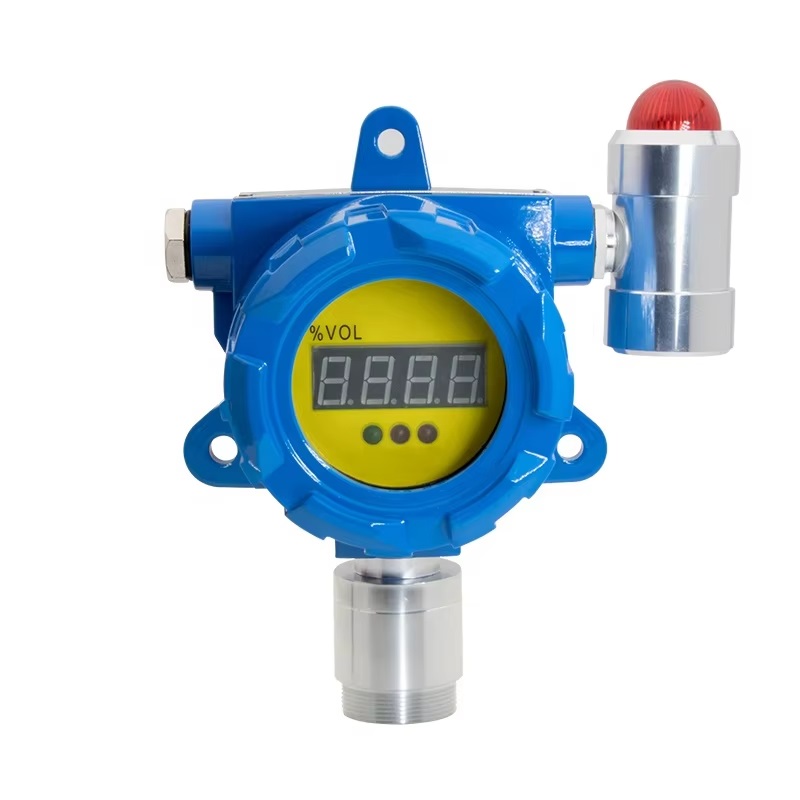

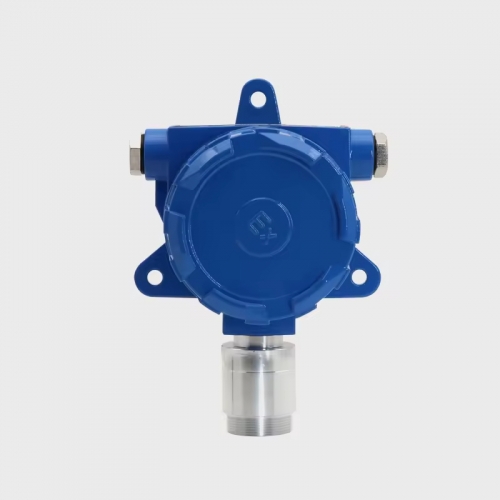

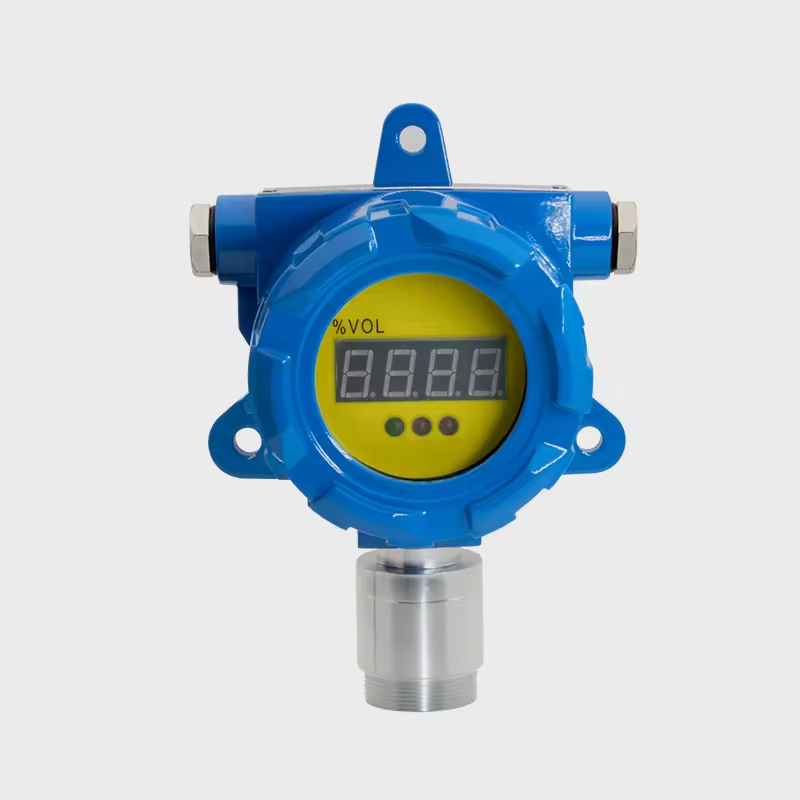

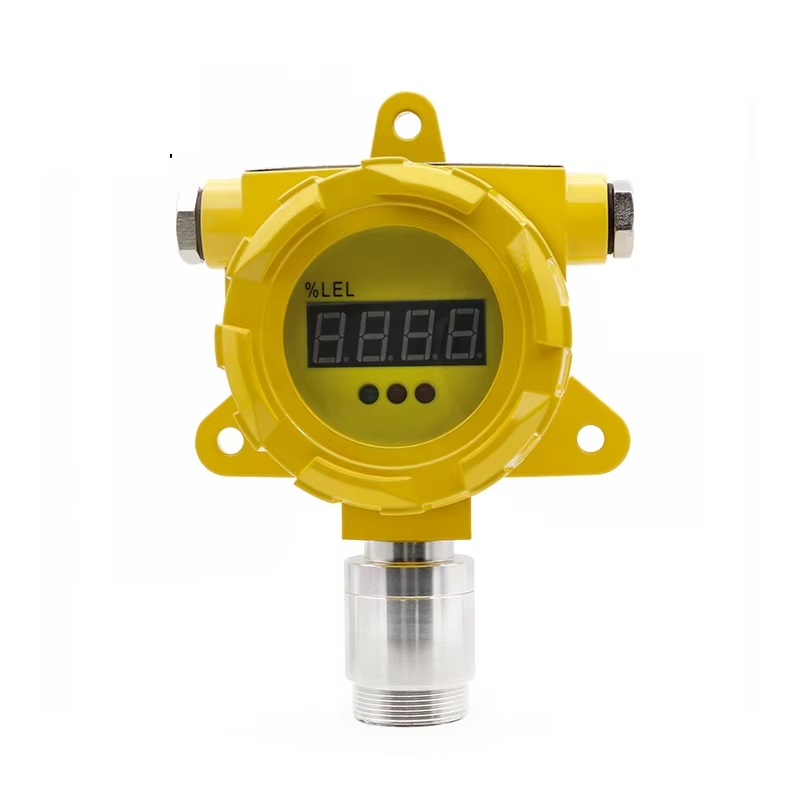

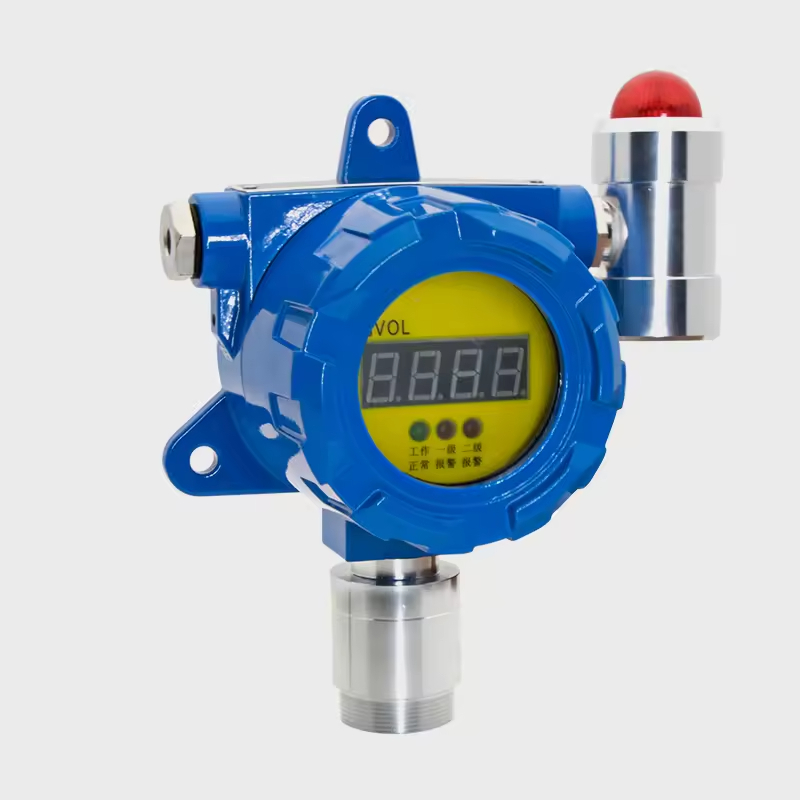

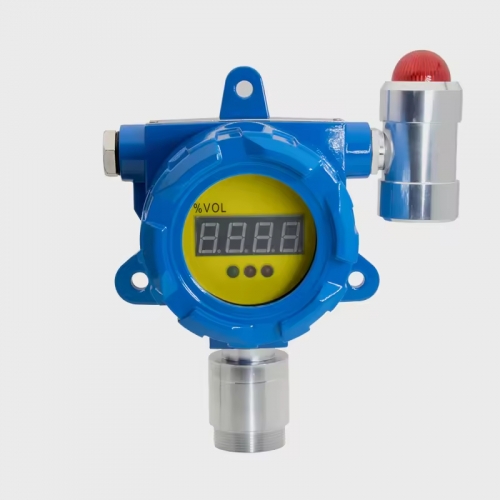

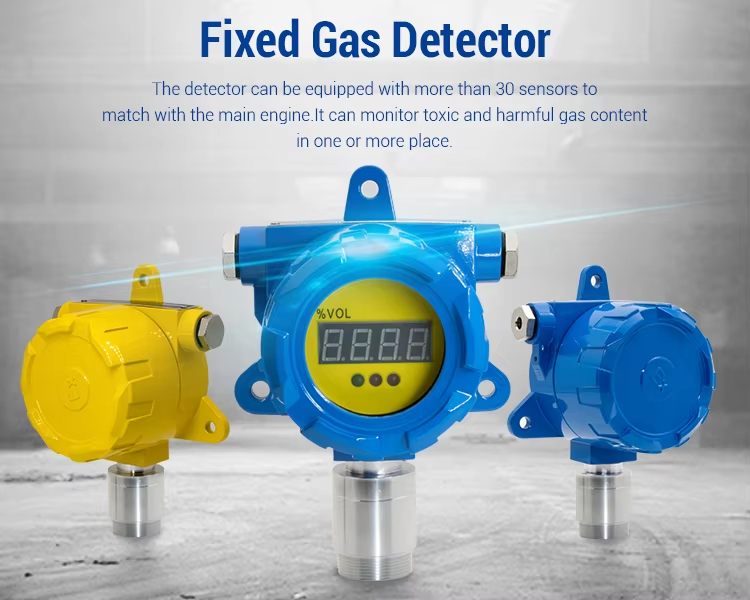

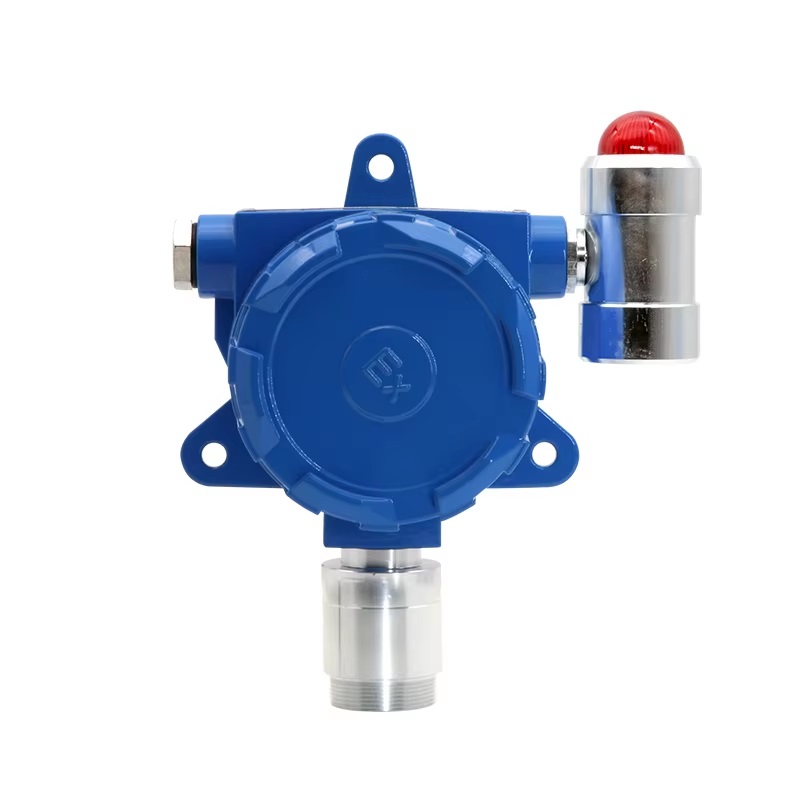

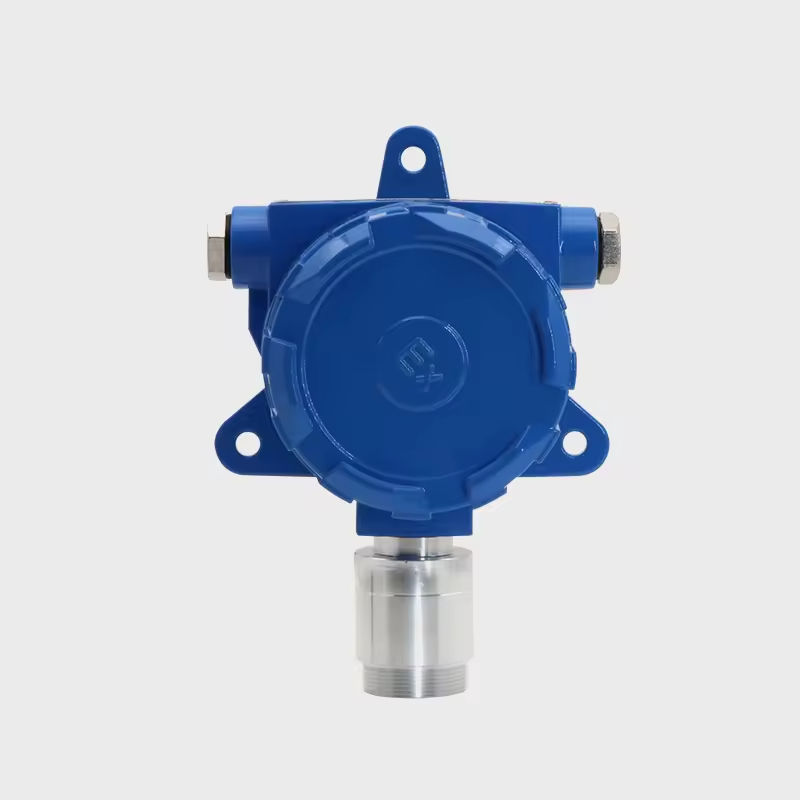

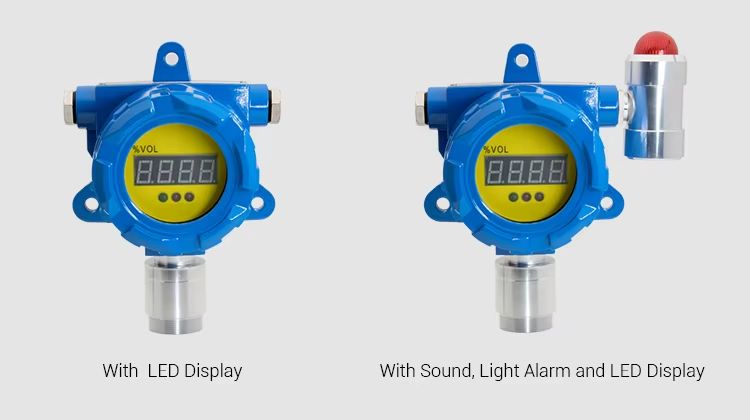

BH-60 Multi Gas Detector with VOC Monitoring Combustible LEL Alarm Gas Leak Detection System
Item No.: BH-60
Description

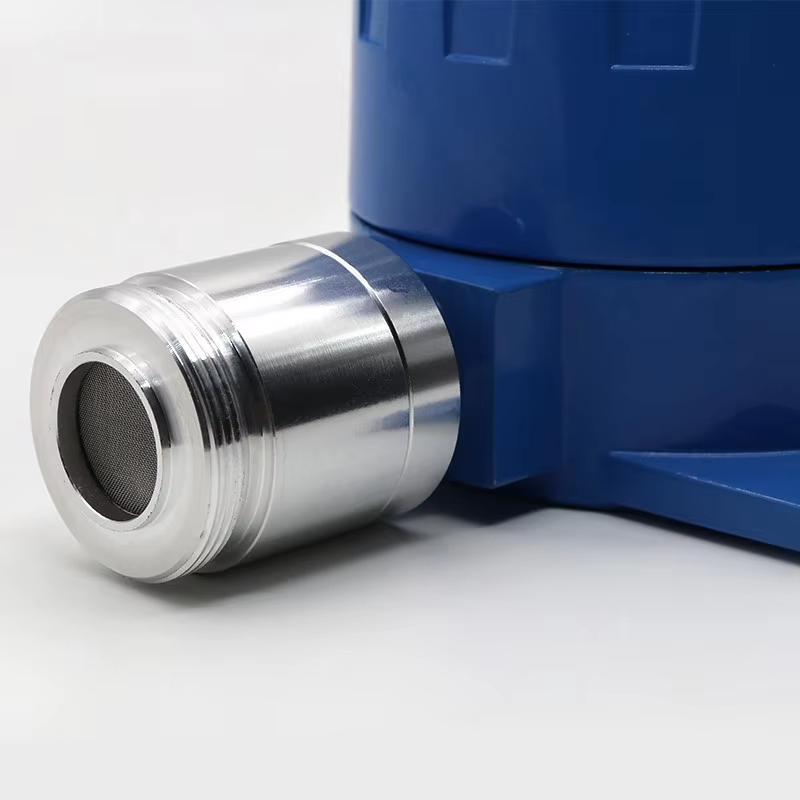

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output.
Main Features

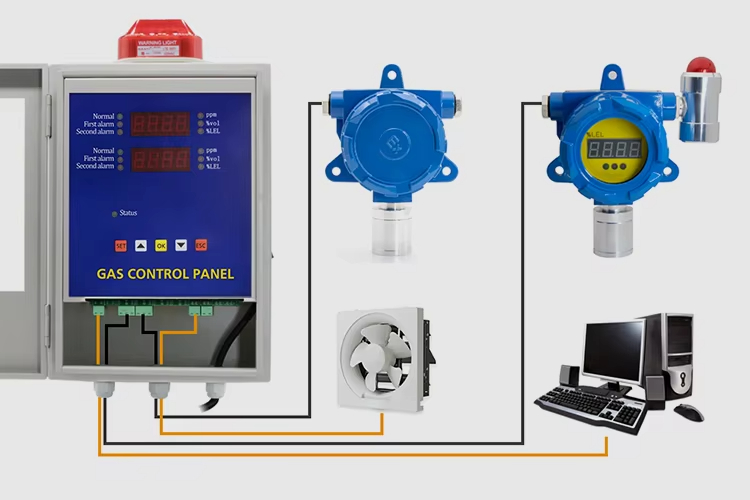

The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting
plant and other places with gas exists.
Features:
4-20mA or RS485 output optional
EX certificate
| Product Name | BH-60 bh-60 fixed gas detector |
| Explosion proof grade | Exd ⅡC T6 Gb |
| Response time | <30S |
| Power supply | DC24V±10% |
| Working temperature | -20℃~50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH (no dew) |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190*150*95mm(L*W*H) |
