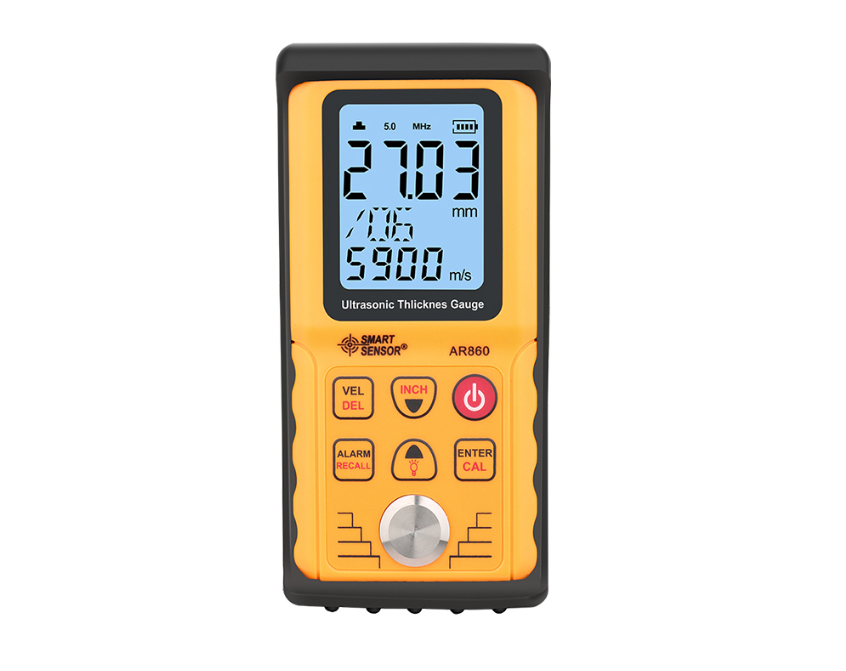

Ultrasonic thickness gauge Digital sheet metal Measuring range: 1.0 to 300mm (steel) Sound Velocity Meter Smart Sensor AR860
Features;
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3.12 sound velocities for different material
4. Coupling status indication
5. 12 thickness measurement data store and recall
6. Thickness alarm setup
7. Back light function
8. Low battery indication
9. Auto power off
Ｓｐｅｃｉａｆｉｃａｔｉｏｎｓ：
|
Measuring range: |
1.00 to 300.0mm(steel) |
|
Accuracy: |
(1%H+0.1mm) |
|
Resolution: |
0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) |
|
Minimum limit for tube measuring steel : |
15*2.0mm( 6 transducer) 20*3.0mm( 10 transducer) |
|
Sound velocity: |
1000 to 9999m/s |
|
Operating environment : |
Operation temperature: 0°C to 40°C Temperature of workpiece: < 60 Relative Humidity: <90% Do not apply in violent vibration / erosive material Avoid impact and humidity |
|
Power supply: |
1.5V AAA * 3 PCS (not include due to air limit) |
|
Operation current: |
35mA (with back light on) |
|
Frequency |
5MHz |
|
Minimum limit for tube measuring |
Ф20*3mm(steel) |
|
Auto Zero Calibration |
V |
|
Auto linear compensation |
V |
|
Coupling Indicator |
V |
|
Metric / Imperial Switchable |
--- |
|
Battery Indication / Auto Power Off |
V |
|
Product Net Weight / Product Size |
240g / 150*80.5*34mm |
