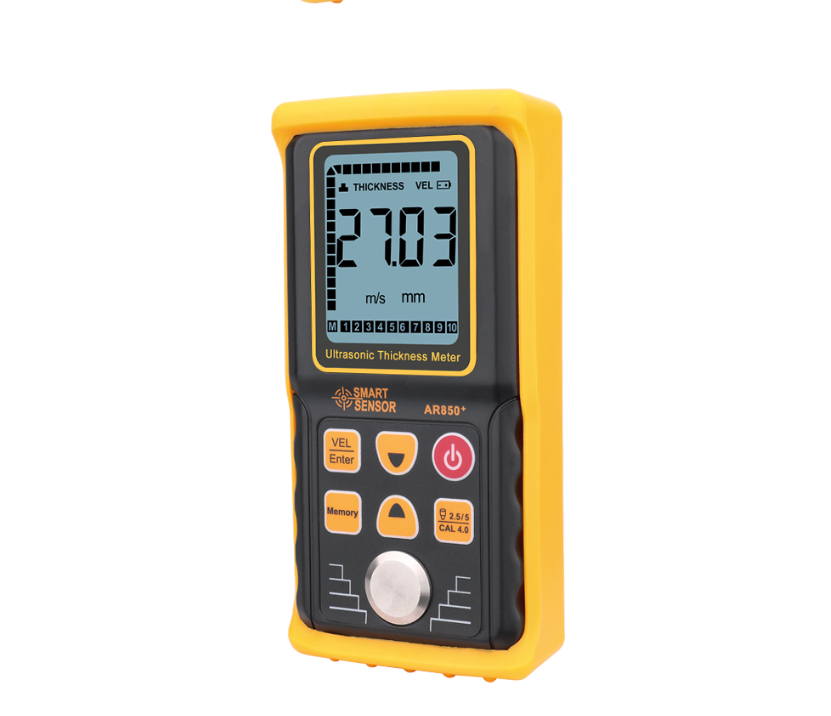

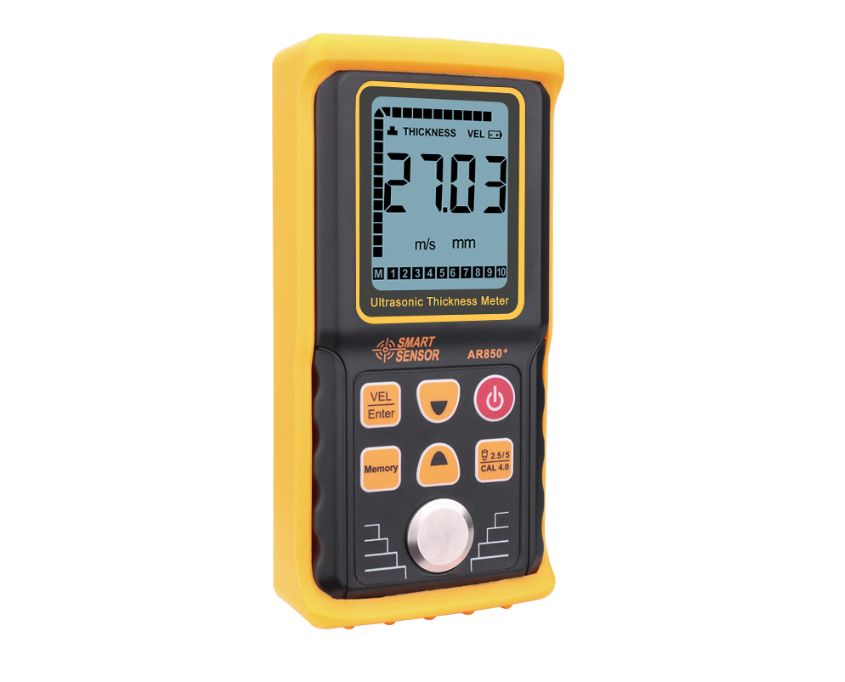

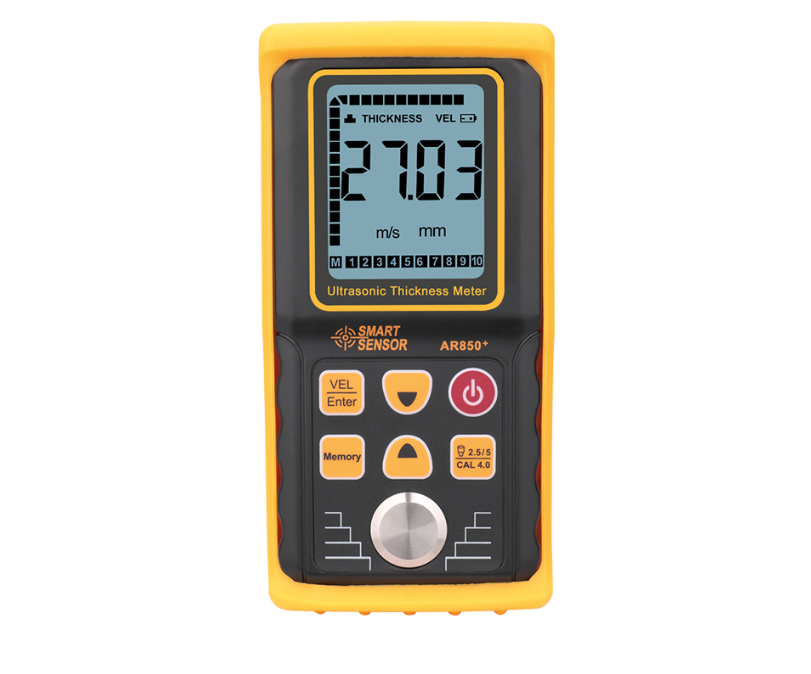

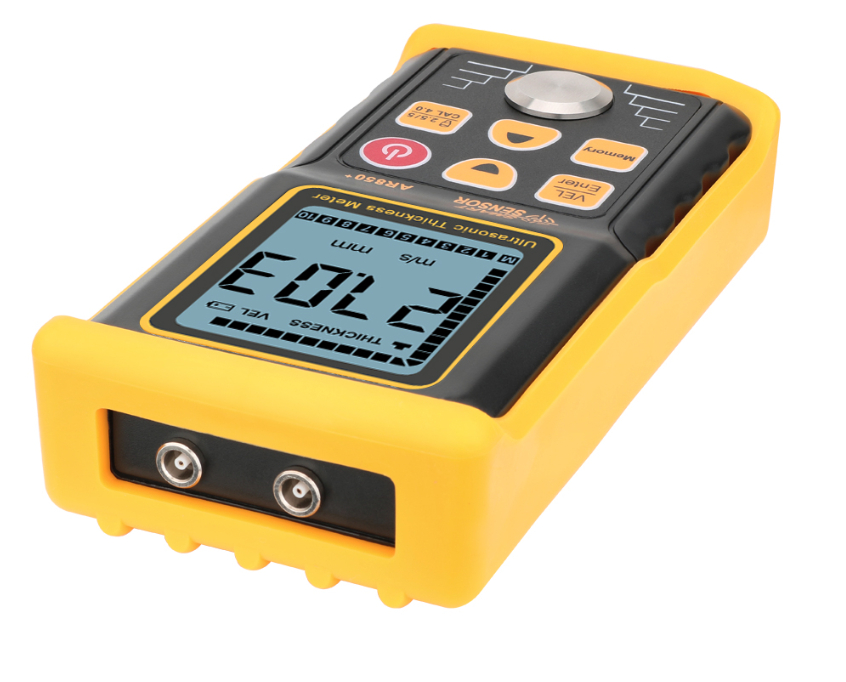

Ultrasonic Thickness Gauge Tester Sound Velocity Meter Metal Width Measuring Instrument 1.2 to 225MM For Steel Aluminium Plate
1. Auto calibration to assure the accuracy.
2. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
3. Make a quick adjustment for the sound velocity / thickness, and a quick recall to the stored data
4. Use “
” and“
” keys to make a quick adjustment for the sound velocity /thickness,and a quick recall to the stored data.
5. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
6. 10 thickness measurement storage and recall function available, which facilitates the height work or working in wild area.
7. Sound velocity measurement. Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further
8. 12 sound velocity for different material which is also adjustable .
9. Low battery indication.
10. Auto power off mode designed to conserve battery power.
11.More than 10000 times long lift keys.
12. Manual power off: Press the power button to turn it off
Specifications:
|
Display: |
4-digital LCD display |
|
Measuring range: |
1.2~225mm(steel) |
|
Minimum limit for tube measuring: |
Φ20*3mm (steel) |
|
Accuracy: |
±(1%H+0.1)mm,H denotes the measured thickness. |
|
Sound velocity range: |
1000 to 9999 m/s |
|
Working frequency: |
5MHz |
|
Minimum display unit: |
0.1 mm |
|
Mininum limit for tube measuring(steel): |
20 * 3.0mm(steel) |
|
Sound velocity Range: |
1000~9999m/s |
|
Measuring sound velocity with a given thickness: |
measuring range: 1000 to 9999 m/s. |
|
Operation temperature: |
0℃ to 40℃ |
|
Relative humidity: |
<90%RH |
|
Hardware/workpiece/material temperature: |
<60℃ |
|

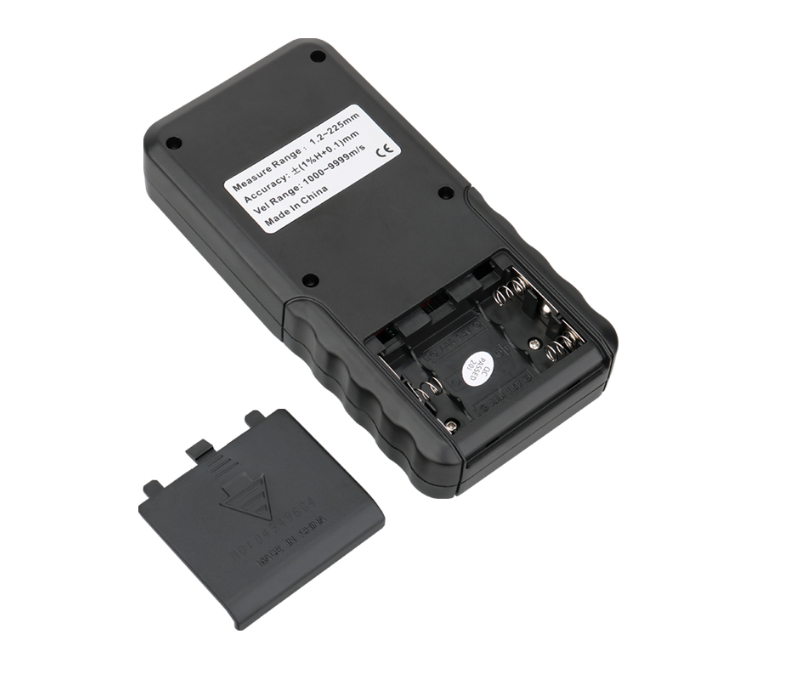

Power supply: |
1.5V AAA * 3 PCS (not include due to air limit) |
|
Operation current: |
Normal operation current 50mA |
|
Stand-by current: |
20uA |
|
Product Net Weight / Product Size |
275g / 70.0*145.5*28mm |
|

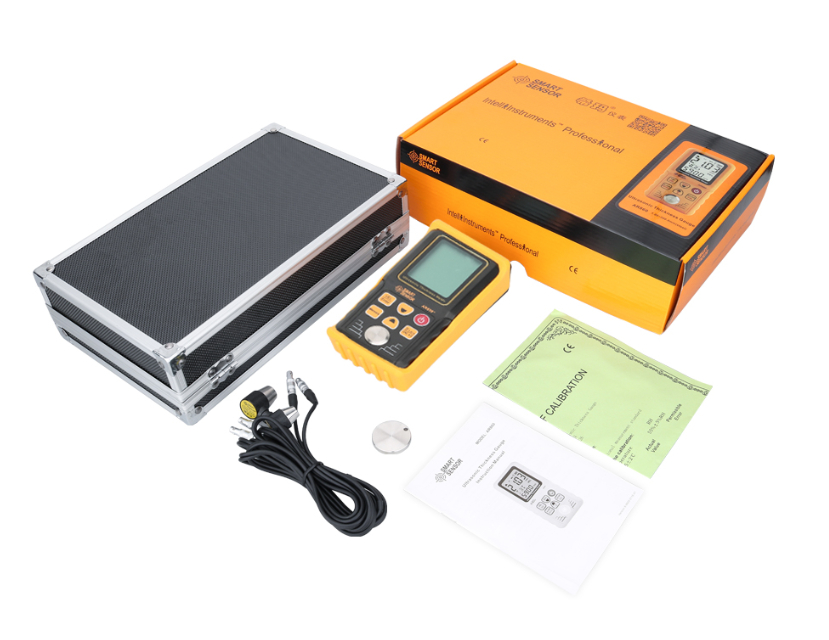

Packing Contents |
1 * Ultrasonic Thickness Gauge |
